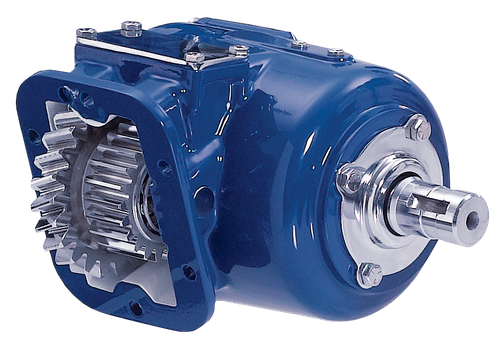

The Muncie CS6S-F6312-E3KD is a CS6/CS8 Series power take-off designed for a wide range of automatic and manual transmission applications, including the Allison 1000/2000 series. The CS6/CS8 Series supports six transmission input gear configurations, giving it broad fitment across popular transmissions. Output options include three remote mount shaft types in keyed and flange configurations, and direct mount pump flanges in SAE A, B, and BB as well as DIN 5462 patterns. The rotatable direct mount flanges allow positioning for maximum clearance during installation. A patented Muncie drag brake prevents shaft rotation when the PTO is disengaged. Call us to confirm proper fit for your application. CS6S-F6312-E3KD or CS6SF6312E3KD.
Features
CS6/CS8 Series PTO with six transmission input gear configurations for wide automatic and manual transmission fitment
Compatible with Allison 1000/2000 series and many manual transmissions
Three remote mount output shaft options in keyed and flange types
SAE A, B, and BB plus DIN 5462 direct mount pump flange patterns
Rotatable direct mount flanges for positioning and clearance flexibility
Patented Muncie drag brake prevents output shaft rotation when PTO is in the OFF position
