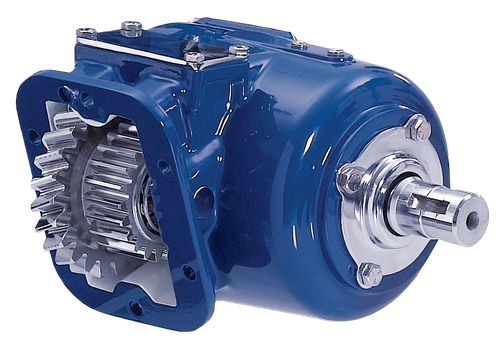

The Muncie CS6S-F7007-E1PX (also referenced as CS6SF7007E1PX) is a Power Take-Off assembly from Muncie's CS6/CS8 Series, designed to fit Allison 1000/2000 Series automatic transmissions as well as many manual transmissions. The CS6/CS8 Series accommodates six transmission input gear configurations, covering a wide range of popular automatic and manual gearboxes. Direct mount pump flanges comply with SAE "A", "B", and "BB" as well as DIN 5462 standards, and the flanges are rotatable to allow maximum clearance for the pump. Muncie's patented drag brake prevents output shaft rotation when the PTO is in the off position. Call Pro Gear and Transmission to confirm this unit is the correct fit for your application.
Features
CS6/CS8 Series PTO - fits Allison 1000/2000 Series and many manual transmissions
Six transmission input gear configurations for broad application coverage
Rotatable direct mount flanges accept SAE "A", "B", and "BB" and DIN 5462 pumps
Three remote mount output shaft options available in keyed and flange types
Patented Muncie drag brake prevents shaft rotation when PTO is disengaged
Optional pulse generator compatible for PTO shaft speed monitoring
