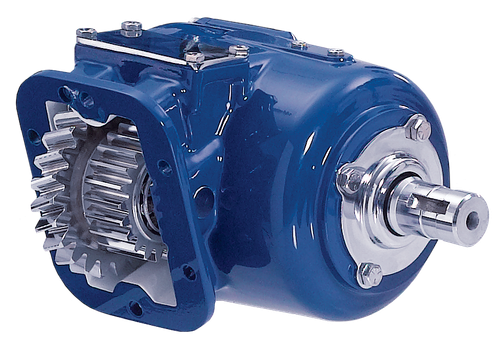

The Muncie CS6S-U6004-E3KR or CS6SU6004E3KR is a CS6 Series power take-off featuring a 6-bolt clutch shift design. The CS6 Series is engineered to mount directly to Allison 1000/2000 series automatics and a wide range of manual transmissions. It supports SAE "A", "B", and "BB" as well as DIN 5462 direct mount pump options, with rotatable flanges that let you position the pump for maximum clearance. Muncie's patented drag brake prevents shaft rotation when the PTO is in the off position. Three remote mount output shaft options are available in keyed and flange types. Call us to confirm this configuration fits your transmission and pump setup.
Features
CS6 Series 6-bolt clutch shift power take-off
Fits Allison 1000/2000 series automatics and many manual transmissions
SAE "A", "B", and "BB" plus DIN 5462 direct mount pump flanges
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents shaft rotation in off mode
Optional pulse generator port for PTO shaft speed monitoring
