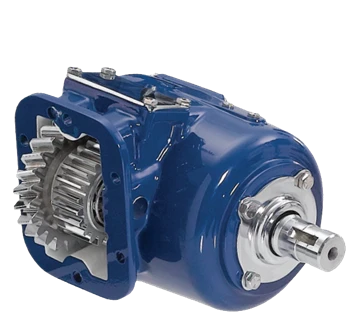

The Muncie CS8S-U6807-A1CX or CS8SU6807A1CX is a CS8 Series power take-off featuring an 8-bolt clutch shift design. It accommodates 19 transmission input gear configurations, covering a wide range of popular automatic and manual transmissions. Three remote mount output shaft options are available in keyed and flange types for versatility in remote pump drive setups. Direct mount pump flanges meet S.A.E. "A", "B", and "BB" as well as DIN 5462 standards, and the flanges rotate to allow pump positioning for maximum clearance. Muncie's patented drag brake prevents shaft rotation when the PTO is in the off position. An optional pulse generator supports System Protection Device shaft speed monitoring. Call us to confirm proper fit for your transmission and pump configuration.
Features
CS8 Series 8-bolt clutch shift PTO
19 transmission input gear options covering popular automatic and manual transmissions
S.A.E. "A", "B", and "BB" plus DIN 5462 direct mount pump flange compatibility
Rotatable direct mount flanges for pump positioning and clearance
Patented Muncie drag brake prevents output shaft rotation in the OFF position
Optional pulse generator for System Protection Device shaft speed monitoring
Tech Specs
- Part Number: CS8S-U6807-A1CX or CS8SU6807A1CX
- Series: CS8
- Shift Type: 8-Bolt Clutch Shift
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- Direct Mount Pump Flanges: S.A.E. "A", "B", "BB"; DIN 5462
- Output Shaft Options: Three remote mount types (keyed and flange)
- Transmission Input Gear Options: 19
- Drag Brake: Yes (Muncie patented)
- Pulse Generator: Optional
