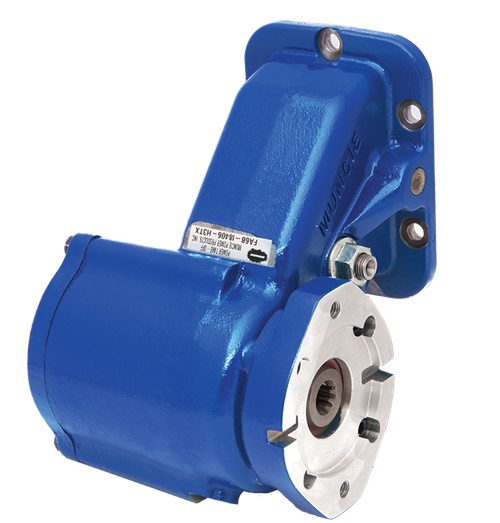

The Muncie FA6B-I8406-H3QX (also listed as FA6BI8406H3QX) is a FA Series, 6-bolt clutch-shift power take-off built for demanding hydraulic applications. Engagement is solenoid-activated, eliminating gear clash during shift. The unit accepts remote or direct pump mounting, giving installers flexibility without additional adapters. A pre-configured wiring harness simplifies installation to a plug-in connection. Per the published FA6B-I84 series ratings, this PTO carries an intermittent torque of 86 lb-ft and continuous torque of 235 lb-ft, with a maximum output speed of 2,500 RPM. Dimensional drawings for the FA6B series are shown below. Call us to confirm proper fit for your transmission application.
Features
FA Series 6-bolt clutch-shift design
Solenoid-activated engagement for positive, clash-free shifting
Pre-configured wiring harness for plug-in installation
Remote and direct pump mounting configurations available
FA6B-I84 series intermittent torque: 86 lb-ft; continuous torque: 235 lb-ft
Maximum output speed: 2,500 RPM
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | |||||||
|---|---|---|---|---|---|---|---|
| PTO Series |
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
MAX Speed
|
| FA6B-A67 | 06 | 25 | 131 | 252 | 19 | 177 | 2500 |
| FA6B-I84 | 06 | 15 | 86 | 235 | 11 | 116 | 2500 |
| FA6B-I84/AS69RC Transmission | 06 | 24 | 124 | 217 | 16 | 172 | 2500 |
