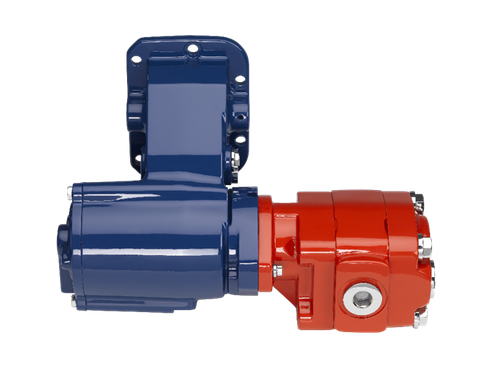

FR62-F1506-Q4TX Muncie FR Series PTO

The Muncie FR62-F1506-Q4TX (also referenced as FR62F1506Q4TX) is an FR Series power takeoff featuring an integral solenoid design that reduces installation time with a pre-configured, plug-in wiring harness. The solenoid-activated clutch shift delivers positive, clash-free engagement. Built with an aluminum housing, this FR model is rated to 150 lb.ft. maximum torque and accepts pumps up to 2.0 cu. in. displacement. The standard output shaft measures 1-1/4" diameter; the direct-mount PTO output shaft is 3/4"-11 spline. A rotatable pump mount flange is included as standard, supporting both remote and direct pump mounting configurations. Call us to confirm proper fit for your application.

Features

FR Series aluminum housing construction
Solenoid-activated clutch shift, positive no-gear-clash engagement
Integral solenoid design with pre-configured plug-in wiring harness
150 lb.ft. maximum torque rating
Accepts pumps up to 2.0 cu. in. displacement
1-1/4" diameter standard output shaft; 3/4"-11 spline direct-mount output
Rotatable pump mount flange standard; remote and direct mount compatible

Tech Specs

• Housing Construction: Aluminum (FR Series)
• Maximum Torque: 150 lb.ft.
• Largest Pump Accepted: 2.0 cu. in.
• Standard Output Shaft Diameter: 1-1/4"
• Direct-Mount PTO Output Shaft: 3/4"-11 spline
• Rotatable Pump Mount Flange: Standard
• Shift Type: Solenoid-activated clutch shift
• Wiring: Pre-configured plug-in harness
•

Additional Information

Weight: 34 lbs.
Housing Construction: Ductile Iron (FA) Aluminum (FR)
Maximum Torque: 125 lb. ft. (FA) 150 lb. ft. (FR)
Largest Pump Offered: 2.9 cu. in. (FA) 2.0 cu. in. (FR)
Standard Output Shaft: 1 1/4" diameter
PTO Output Shaft (direct mount): 3/4"-11 spline
Rotatable Pump Mount Flange: Standard
