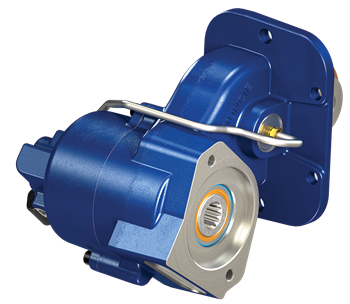

Genuine Muncie PTO P/N: FR67-F1506-F4NX or FR67F1506F4NX. Expert help when you need it! Call us for questions on this part or availablity!
Features
Fits 4X2 and 4X4 Ford Super Duty trucks, F-350 to F-550, with the Ford 6R140 transmission (may also be used on F-650 and F-750 trucks) Noise abatement mechanism eliminates virtually all gear rattle noise for a quiet PTO Solenoid activated Preconfigured wiring harness One-piece installation with rocker.
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | |||||||
|---|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
Weight
|
|
(09) Stationary |
39 | 200 | 140 | (29) | (271) | (190) | 35 lbs. (15.9 Kg.) |
|
(09) Mobile |
22 | *120 | 120 | (16) | (162) | (162) | 35 lbs. (15.9 Kg.) |
| *FR6Q limit in mobile applications continuous intermittent | |||||||
