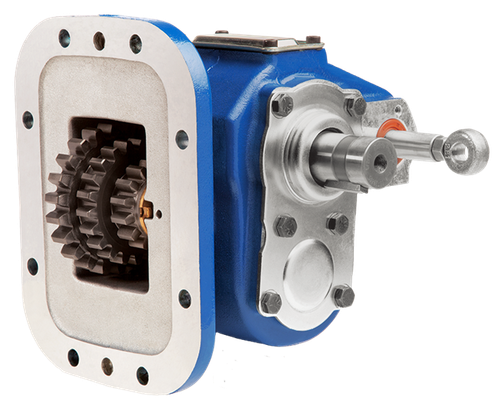

Genuine Muncie PTO P/N: RL6D-U6805-A3VX or RL6DU6805A3VX. We offer original, genuine parts straight from the manufacturer! Order today!
Features
Reversible output rotation: Ideal for driving mechanical winches or matching driven equipment rotational needs
6 mounting and torque capabilities: Provides applications for most power requirements
Constant mesh input gears: Protect transmission gears from damage from improper shift procedures
Air-shift option available: Provides simple, positive shift function
Optional low ratio output for RL Series: Provides extra low speed where required
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 03 | 38 | 200 | N/A | (28) | (271) | N/A |
| 05 | 38 | 200 | N/A | (28) | (271) | N/A |
