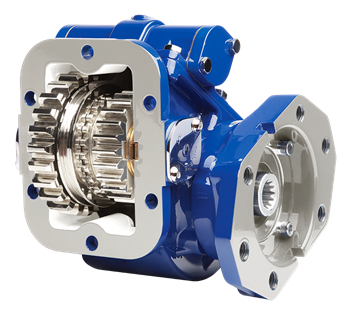

The Muncie SH6B-S6807-P1BX (also referenced as SH6BS6807P1BX) is an SH6 Series air-shift-only power take-off built for high-torque truck applications. It features an integral air shift design with no exposed air cylinder, mounted in a 6-bolt cast iron housing measuring 11.63 in. H x 13.38 in. W x 15.63 in. L. The SH Series bridges the gap between Muncie's TG and 82 Series, offering five speed ratios and 12 output shaft options to match most common hydraulic pump configurations. Seventeen input gear sets cover most popular transmission applications. Intermittent torque ratings reach 400 ft-lb at speed ratios 05 and 07. Call us to confirm proper fit for your transmission and pump setup.
Features
Air-shift-only design with integral air shift, no exposed air cylinder
6-bolt cast iron housing, 11.63 in. H x 13.38 in. W x 15.63 in. L
5 speed ratios available for application versatility
17 input gear sets to fit most popular transmissions
12 output shaft options to match most common pump types
Intermittent torque up to 400 ft-lb (542 Nm) at speed ratios 05 and 07
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
