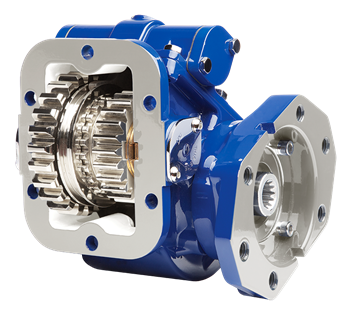

The Muncie SH6B-U6807-A3KX or SH6BU6807A3KX is an air shift power take-off from the Muncie SH Series, engineered for high-torque truck applications that fall between lighter-duty and heavier-duty PTO ranges. The integral air shift design keeps the air cylinder enclosed within the housing, and the 6-bolt cast iron housing simplifies installation. The SH Series supports 17 input gear sets to cover most popular transmissions, 12 output shaft configurations to match most common pump types, and 5 available speed ratios. At speed ratio 05 or 07, the series is rated at 400 ft-lb intermittent torque and 280 ft-lb continuous torque at 1,000 RPM. Call us to confirm proper fit for your truck and pump setup.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for straightforward mounting
17 input gear sets compatible with most popular transmissions
12 output shaft options to match most common pump types
5 available speed ratios for application flexibility
Series intermittent torque ratings from 325 to 400 ft-lb at 1,000 RPM depending on speed ratio
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
