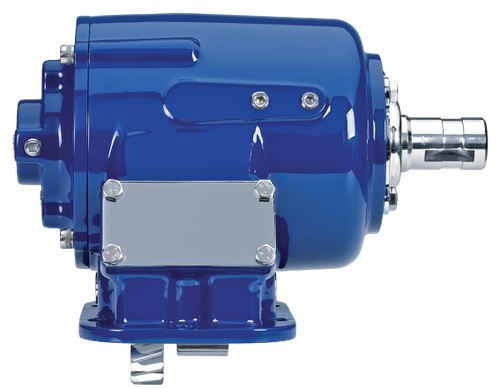

The Muncie SH6D-S6812-E1BX is an SH Series power take-off built for air-shift-only operation in high-torque applications. The integral air shift design eliminates an exposed air cylinder, keeping the installation clean and the mounting straightforward on a 6-bolt cast iron housing. The SH Series bridges the gap between the TG and 82 Series PTOs, offering 17 input gear sets to cover most popular transmissions, 12 output shaft options for compatibility with most pump types, and 5 speed ratios. Depending on the speed ratio selected, intermittent torque ratings reach up to 400 ft-lb (542 Nm) at 1,000 RPM. Call us to confirm proper fit for your transmission and pump configuration. Also referenced as SH6DS6812E1BX.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
17 input gear sets cover most popular transmissions
12 output shaft options fit most popular pump types
5 available speed ratios for application versatility
Intermittent torque up to 400 ft-lb (542 Nm) at 1,000 RPM depending on ratio selected
Tech Specs
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
- Housing: 6-bolt cast iron
- Shift type: Air shift only
- Input gear sets: 17
- Output shaft options: 12
- Speed ratios available: 5
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
