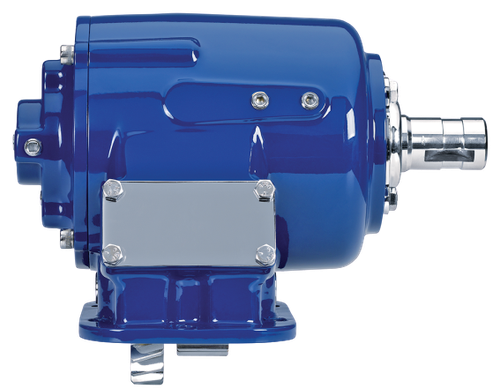

The Muncie SH6S-F6309-A3BX or SH6SF6309A3BX is a 6-bolt, air-shift-only power take-off from Muncie's SH6 Series, built for high-torque truck applications. The integral air shift design encloses the air cylinder completely, eliminating exposed components. A 6-bolt cast iron housing simplifies mounting and delivers the structural rigidity demanded in heavy service. The SH Series supports 17 input gear sets to cover most popular transmission configurations, 5 speed ratios for application flexibility, and 12 output shaft options to match the most common pump types. Overall dimensions are 15.63 in. long x 13.38 in. wide x 11.63 in. tall. Call us to confirm proper fit for your transmission and pump configuration.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for secure, straightforward mounting
17 input gear sets compatible with most popular transmission types
5 available speed ratios for application flexibility
12 output shaft options to match most common pump configurations
Overall dimensions: 15.63 in. L x 13.38 in. W x 11.63 in. H
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
