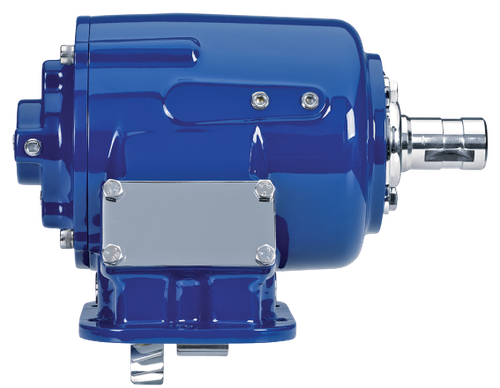

The Muncie SH6S-F6312-A3CX or SH6SF6312A3CX is a heavy-duty SH Series power take-off built for high-torque applications. This unit features an integral air-shift design with no exposed air cylinder, a 6-bolt cast iron housing, and compatibility with 17 input gear sets covering most popular transmissions. With 12 output shaft options, it accommodates a wide range of pump types. Five speed ratios are available across the SH Series, with intermittent torque ratings reaching up to 400 lb-ft at the 05 and 07 speed ratios. Dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm the correct fit for your transmission and pump configuration.
Features
Integral air-shift design with no exposed air cylinder
6-bolt cast iron housing for high-strength, easy mounting
17 input gear sets to fit most popular transmissions
12 output shaft options to match most pump types
5 available speed ratios across the SH Series
Intermittent torque up to 400 lb-ft at speed ratios 05 and 07
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
