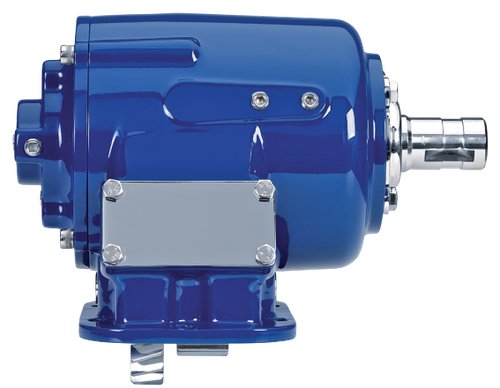

The Muncie SH6S-F6612-A3BX (also referenced as SH6SF6612A3BX) is an SH Series air-shift-only power take-off built for high-torque applications. It features an integral air shift design with no exposed air cylinder, keeping the install clean and protected. The 6-bolt cast iron housing mounts solidly to most popular transmission applications, and 17 available input gear sets give it broad coverage across common transmission families. Five speed ratios and 12 output shaft options make this PTO adaptable to a wide range of pump types. The SH Series was designed to fill the gap between lighter and heavier PTO lines, delivering intermittent torque ratings up to 400 lb-ft at 1,000 RPM depending on the ratio selected. Call us to confirm proper fit for your transmission and pump configuration.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for secure, high-strength mounting
17 input gear sets covering most popular transmission applications
12 output shaft options to match most common pump types
5 speed ratios available across the SH Series for application flexibility
Intermittent torque ratings up to 400 lb-ft (542 Nm) at 1,000 RPM
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
