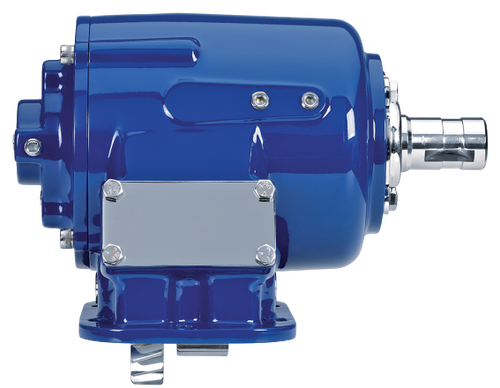

The Muncie SH6S-F7007-E1IX (also referenced as SH6SF7007E1IX) is an air shift power take-off from the Muncie SH Series, designed to fill the torque gap between lighter-duty and heavy PTO applications. The integral air shift design keeps the air cylinder fully enclosed within the housing. The 6-bolt cast iron housing mounts directly to compatible transmission openings, and the unit is offered across 17 input gear sets covering most popular truck transmissions. Five speed ratios are available across the series, and 12 output shaft options accommodate most common hydraulic pump types. Overall dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm proper fit for your transmission and pump configuration.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for direct transmission mounting
17 input gear sets to fit most popular transmissions
5 speed ratios across the SH Series
12 output shaft options to match most hydraulic pump types
Overall dimensions: 11.63 in. H x 13.38 in. W x 15.63 in. L
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
