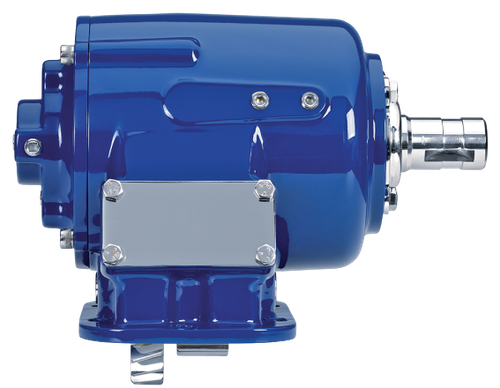

The Muncie SH6S-M6507-E1CX or SH6SM6507E1CX is an air shift power take-off from Muncie Power's SH Series, engineered for high-torque applications that fall between the TG and 82 Series in capacity. The integral air shift design keeps the air cylinder fully enclosed, eliminating exposed hardware at the shift mechanism. The 6-bolt cast iron housing mounts securely to the transmission, and compatibility spans 17 input gear sets covering most popular heavy-duty transmissions. Five speed ratios are available across the SH Series, and 12 output shaft options accommodate a wide range of hydraulic pump configurations. Dimensions are 11.63 in. H x 13.38 in. W x 15.63 in. L. Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for secure, high-strength transmission mounting
17 input gear sets covering most popular heavy-duty transmissions
5 speed ratios across the SH Series for application versatility
12 output shaft options to fit most popular hydraulic pump types
Designed for high-torque applications between the Muncie TG and 82 Series
Tech Specs
- Height: 11.63 in.
- Width: 13.38 in.
- Length: 15.63 in.
- Housing: 6-bolt cast iron
- Shift type: Air shift (integral, no exposed air cylinder)
- Input gear sets: 17 (fits most popular transmissions)
- Speed ratios: 5
- Output shaft options: 12
- Sold individually (each)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
