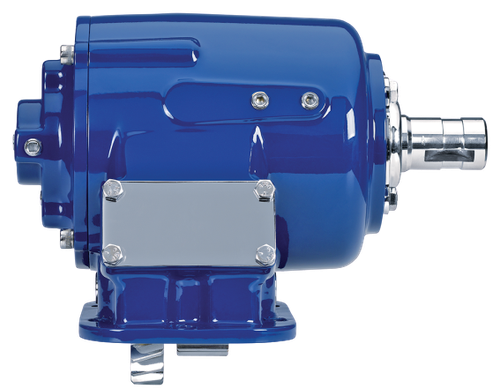

The Muncie SH6S-U6005-E3EP is an air-shift-only power take-off from the SH Series, engineered for high-torque truck applications. The integral air shift design eliminates the exposed air cylinder, and the 6-bolt cast iron housing simplifies mounting. With 17 input gear sets available across the SH Series, this PTO fits most popular transmissions, and 12 output shaft options accommodate most common pump types. Five speed ratios give the series broad application coverage. Intermittent torque ratings for this series range from 325 to 400 lb-ft depending on speed ratio, with continuous torque ranging from 228 to 280 lb-ft. Also referenced as SH6SU6005E3EP. A genuine Muncie part from Pro Gear and Transmission. Call us to confirm proper fit for your transmission and pump configuration.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
17 input gear sets across the SH Series fit most popular transmissions
12 output shaft options accommodate most common pump types
5 speed ratios for broad application versatility
Series intermittent torque up to 400 lb-ft (542 Nm) at speed ratios 05 and 07
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
