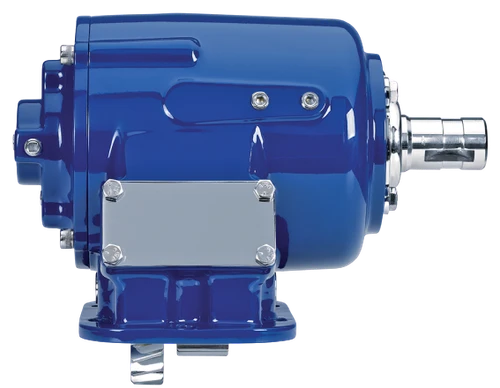

The Muncie SH6S-U6807-A1CX (also referenced as SH6SU6807A1CX) is an SH6 Series air-shift-only power take-off built for high-torque applications. The SH Series was designed to fill the gap between the TG and 82 Series, and this unit features an integral air shift design with no exposed air cylinder, a 6-bolt cast iron housing, and compatibility with 17 input gear sets to fit most popular transmissions. Five speed ratios and 12 output shaft options give this PTO broad application flexibility across common pump types. Intermittent torque capacity reaches 400 ft-lb (542 Nm) at speed ratios 05 and 07 at 1,000 RPM, stepping down to 375 ft-lb at ratio 09 and 325 ft-lb at ratios 12 and 13. Call us to confirm proper fit for your transmission and pump combination.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for secure, high-strength mounting
17 input gear sets compatible with most popular transmissions
5 speed ratios across the SH Series range
12 output shaft options to fit most popular pump types
Intermittent torque up to 400 ft-lb (542 Nm) at 1,000 RPM (speed ratios 05 and 07)
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
