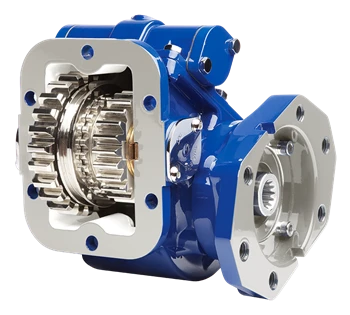

The Muncie SH6S-U6807-A1ZX or SH6SU6807A1ZX is a 6-bolt, medium-duty power take-off from Muncie's SH Series, engineered specifically for high-torque air-shift applications. Its integral air-shift design eliminates an exposed air cylinder, keeping installation clean and the unit compact. The 6-bolt cast iron housing mounts solidly to a wide range of transmissions, backed by 17 available input gear sets. Five speed ratios and 12 output shaft options give this PTO broad compatibility across pump types. The SH Series was created to fill the performance gap between the Muncie TG and 82 Series. Call us to confirm proper fit for your truck and transmission.
Features
Integral air-shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
17 input gear sets to fit most popular transmissions
5 available speed ratios for versatile application matching
12 output shaft options to fit most popular pump types
Built for high-torque applications between the Muncie TG and 82 Series in performance
Tech Specs
- Series: Muncie SH6 Series
- Housing: 6-bolt cast iron
- Shift Type: Air shift only (integral, no exposed air cylinder)
- Input Gear Sets: 17
- Speed Ratios: 5
- Output Shaft Options: 12
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
