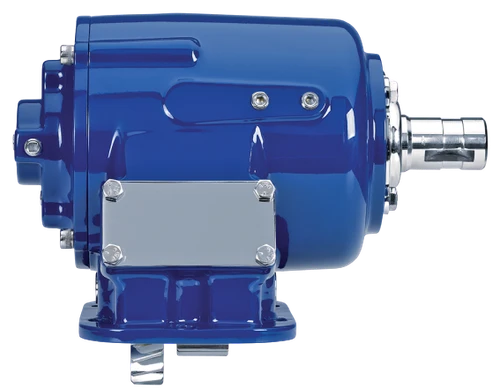

The Muncie SH6S-U6807-A3CX or SH6SU6807A3CX is an air-shift-only power take-off from the Muncie SH Series, engineered to fill the performance gap between the TG and 82 Series PTOs. The integral air shift design keeps the air cylinder fully enclosed within the housing, eliminating exposed external components. The 6-bolt cast iron housing simplifies mounting and delivers structural strength. This unit accommodates 17 input gear sets to fit most popular transmissions and offers 12 output shaft options to match common pump configurations. Five available speed ratios provide application flexibility. Intermittent torque ratings at 1,000 RPM range from 325 to 400 lb-ft depending on the selected ratio. Call us to confirm proper fit for your transmission and pump combination.
Features
Integral air shift design with fully enclosed air cylinder - no exposed external air components
6-bolt cast iron housing for straightforward mounting and structural strength
17 input gear sets to fit most popular transmission applications
12 output shaft options to match common hydraulic pump types
5 available speed ratios with intermittent torque ratings from 325 to 400 lb-ft at 1,000 RPM
Air-shift-only operation built specifically for high-torque applications
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
