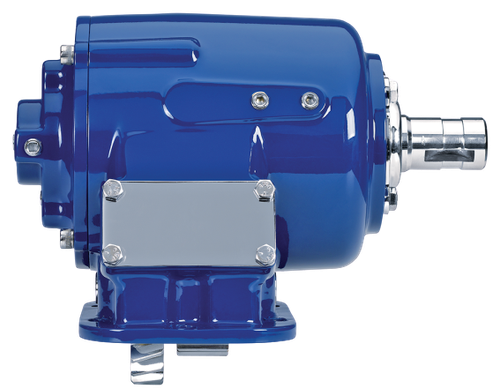

The Muncie SH6S-U6807-P3IX or SH6SU6807P3IX is an SH6 Series air-shift power take-off built for high-torque applications. It sits between Muncie's TG and 82 Series and mounts via a 6-bolt cast iron housing, which keeps installation straightforward on most popular transmissions. The integral air shift mechanism encloses the air cylinder within the housing, so there are no exposed external components. Five speed ratios and 12 output shaft options give it broad compatibility with common pump types. At speed ratio 05 or 07, the unit is rated for 400 lb-ft intermittent torque and 280 lb-ft continuous torque at 1,000 RPM. Call us to confirm proper fit for your application.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
5 speed ratios: rated up to 400 lb-ft intermittent / 280 lb-ft continuous torque at ratios 05 and 07
17 input gear sets compatible with most popular transmissions
12 output shaft options to suit most common pump types
Designed to fill the torque range between Muncie TG and 82 Series PTOs
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
