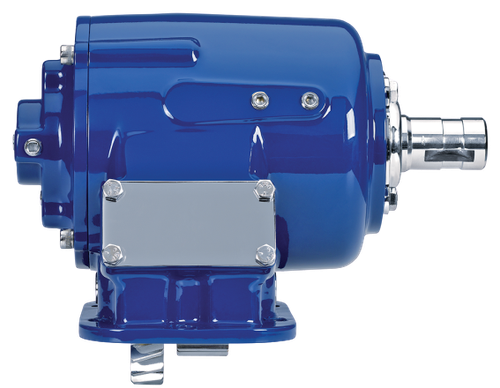

The Muncie SH6S-U6809-A3IX or SH6SU6809A3IX is an SH6 Series air shift power take-off designed for high-torque truck applications. The integral air shift design keeps the air cylinder fully enclosed, and the 6-bolt cast iron housing simplifies installation. Muncie engineered this series to bridge the gap between lighter- and heavier-duty PTO lines, offering 5 available speed ratios and 17 input gear sets to match most popular transmission configurations. Twelve output shaft options let it pair with most common pump types. Dimensions are 15.63 in. length x 13.38 in. width x 11.63 in. height. Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air shift design with no exposed air cylinder
6-bolt cast iron housing for strength and straightforward mounting
17 input gear sets to fit most popular transmission configurations
5 available speed ratios for application versatility
12 output shaft options to match most common pump types
Dimensions: 15.63 in. L x 13.38 in. W x 11.63 in. H
Tech Specs
- Series: SH6 Series
- Shift Type: Air shift (integral, no exposed air cylinder)
- Housing: 6-bolt cast iron
- Input Gear Sets: 17
- Speed Ratios Available: 5
- Output Shaft Options: 12
- Length: 15.63 in.
- Width: 13.38 in.
- Height: 11.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
