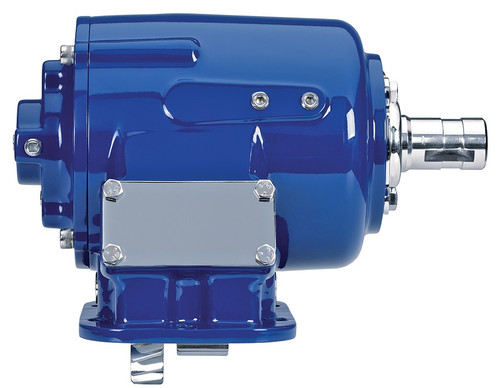

The Muncie SH6S-U6813-A1KX or SH6SU6813A1KX is an SH Series air-shift power take-off built for high-torque truck and work-truck applications. It uses an integral air-shift design with no exposed air cylinder, mounted in a 6-bolt cast iron housing. The SH Series sits between Muncie's TG and 82 Series in capacity, offering 5 speed ratios and 12 output shaft options to match a wide range of pump configurations. Depending on the speed ratio, intermittent torque ratings range from 325 to 400 ft-lb at 1,000 RPM, with continuous torque from 228 to 280 ft-lb. Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air-shift design with no exposed air cylinder
6-bolt cast iron housing for strength and easy mounting
5 available speed ratios for application flexibility
12 output shaft options to fit most popular pump types
Compatible with 17 input gear sets covering most popular transmissions
Intermittent torque ratings from 325 to 400 ft-lb at 1,000 RPM depending on ratio
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
