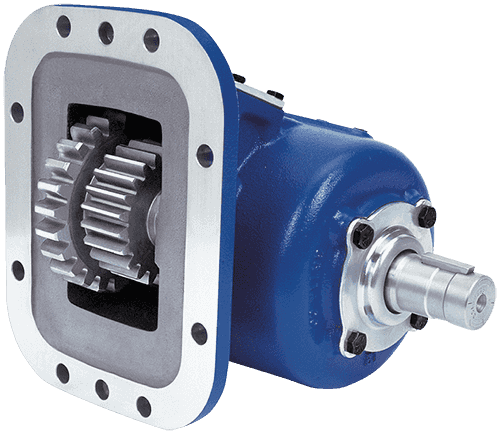

The Muncie SH8 Series Power Take-Off, part number SH8B-U6005-E1BX or SH8BU6005E1BX, is an air-shift-only PTO built for high-torque applications. It bridges the gap between the Muncie TG and 82 Series, offering an 8-bolt cast iron housing for straightforward mounting and structural strength. The integral air shift design keeps the air cylinder internal, eliminating exposed components. Five speed ratios give this unit flexibility across applications, and 17 input gear sets cover most popular transmission interfaces. Twelve output shaft options accommodate a wide range of pump types. Torque ratings vary by speed ratio, reaching up to 400 ft-lb intermittent and 280 ft-lb continuous at the 05 and 07 ratios. Call us to confirm proper fit for your application.
Features
8-bolt cast iron housing for rigid, straightforward mounting
Integral air shift design with no exposed air cylinder
17 input gear sets to fit most popular transmission makes
12 output shaft options to match most common pump configurations
5 speed ratios available; intermittent torque ratings from 325 to 400 ft-lb depending on ratio
Air-shift-only operation designed for high-torque duty cycles
Tech Specs
- Series: Muncie SH8 Series Power Take-Off
- Housing: 8-bolt cast iron
- Shift type: Air shift only (integral design, no exposed air cylinder)
- Speed ratios available: 5
- Input gear sets: 17
- Output shaft options: 12
- Intermittent torque (ratios 05, 07): 400 ft-lb (542 Nm)
- Continuous torque (ratios 05, 07): 280 ft-lb (379 Nm)
- Intermittent HP at 1000 RPM (ratios 05, 07): 76 HP (57 kW)
- Intermittent torque (ratio 09): 375 ft-lb (508 Nm)
- Continuous torque (ratio 09): 263 ft-lb (356 Nm)
- Intermittent HP at 1000 RPM (ratio 09): 71 HP (53 kW)
- Intermittent torque (ratios 12, 13): 325 ft-lb (441 Nm)
- Continuous torque (ratios 12, 13): 228 ft-lb (309 Nm)
- Intermittent HP at 1000 RPM (ratios 12, 13): 62 HP (46 kW)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
