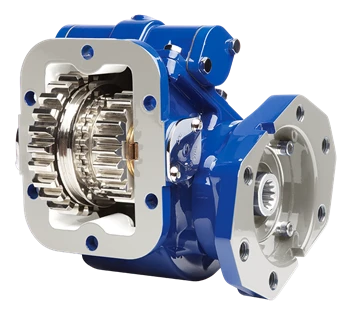

The Muncie SH8B-U6807-A1IX (also cataloged as SH8BU6807A1IX) is an SH8 Series medium-duty power take-off with an 8-bolt cast iron housing and integral air shift design. Because the air cylinder is fully enclosed inside the housing, there are no exposed external cylinders to damage or leak. Five speed ratios and 17 input gear sets make this PTO compatible with most popular transmissions, while 12 output shaft options accommodate a wide range of pump configurations. Intermittent torque ratings reach 400 lb-ft at speed ratios 05 and 07, stepping to 375 lb-ft at ratio 09 and 325 lb-ft at ratios 12 and 13. Continuous torque ratings run from 228 to 280 lb-ft depending on the ratio selected. Call us to confirm the right ratio and output shaft for your specific application.
Features
SH8 Series medium-duty power take-off with integral air shift - no exposed external air cylinder
8-bolt cast iron housing for secure, straightforward mounting
5 speed ratios available to match output requirements
17 input gear sets for broad transmission compatibility
12 output shaft options to suit most popular pump types
Intermittent torque up to 400 lb-ft (542 Nm); continuous torque up to 280 lb-ft (379 Nm) at ratios 05 and 07
Tech Specs
- Part Number: SH8B-U6807-A1IX or SH8BU6807A1IX
- Series: SH8
- Housing: 8-bolt cast iron
- Shift Type: Integral air shift (no exposed air cylinder)
- Speed Ratios Available: 5
- Input Gear Sets: 17
- Output Shaft Options: 12
- Intermittent Torque (Ratio 05/07): 400 lb-ft (542 Nm)
- Continuous Torque (Ratio 05/07): 280 lb-ft (379 Nm)
- Intermittent Torque (Ratio 09): 375 lb-ft (508 Nm)
- Continuous Torque (Ratio 09): 263 lb-ft (356 Nm)
- Intermittent Torque (Ratio 12/13): 325 lb-ft (441 Nm)
- Continuous Torque (Ratio 12/13): 228 lb-ft (309 Nm)
- Intermittent HP @ 1000 RPM (Ratio 05/07): 76 HP (57 kW)
- Intermittent HP @ 1000 RPM (Ratio 09): 71 HP (53 kW)
- Intermittent HP @ 1000 RPM (Ratio 12/13): 62 HP (46 kW)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
