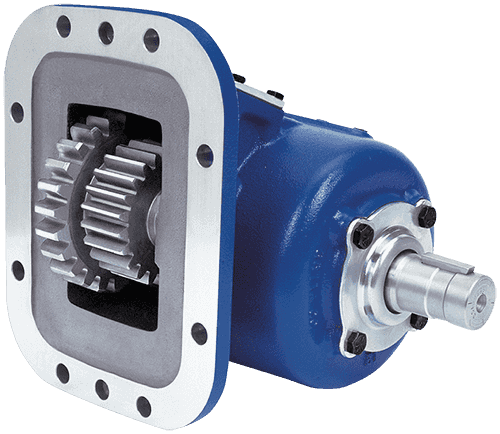

The Muncie SH8B-U6807-A3KX or SH8BU6807A3KX is an SH Series air-shift power take-off built for high-torque applications. It uses an 8-bolt cast iron housing that mounts easily and resists flex under load. The integral air-shift design eliminates the exposed air cylinder, keeping the unit compact on the transmission. Five available speed ratios give flexibility across applications, and the 17 input gear sets cover most popular transmission configurations. Twelve output shaft options let you match common pump types without adapters. At speed ratio 05 or 07, intermittent rating is 76 HP and 400 lb-ft of torque at 1,000 RPM. Call us to confirm proper fit for your transmission and pump setup.
Features
Integral air-shift design with no exposed air cylinder
8-bolt cast iron housing for easy mounting and high structural strength
17 input gear sets to fit most popular transmission configurations
12 output shaft options compatible with most common pump types
5 available speed ratios for application versatility
Intermittent torque rating up to 400 lb-ft (542 Nm) at speed ratios 05 and 07
Tech Specs
- Series: Muncie SH Series
- Part Number: SH8B-U6807-A3KX or SH8BU6807A3KX
- Housing: 8-bolt cast iron
- Shift Type: Air shift (integral, no exposed air cylinder)
- Speed Ratios Available: 5
- Input Gear Sets: 17
- Output Shaft Options: 12
- Intermittent Torque (Ratio 05/07): 400 lb-ft (542 Nm)
- Continuous Torque (Ratio 05/07): 280 lb-ft (379 Nm)
- Intermittent HP @ 1,000 RPM (Ratio 05/07): 76 HP (57 kW)
- Intermittent Torque (Ratio 09): 375 lb-ft (508 Nm)
- Continuous Torque (Ratio 09): 263 lb-ft (356 Nm)
- Intermittent HP @ 1,000 RPM (Ratio 09): 71 HP (53 kW)
- Intermittent Torque (Ratio 12/13): 325 lb-ft (441 Nm)
- Continuous Torque (Ratio 12/13): 228 lb-ft (309 Nm)
- Intermittent HP @ 1,000 RPM (Ratio 12/13): 62 HP (46 kW)
- Height: 11.63 in.
- Width: 13.38 in.
- Length: 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) |
(309)
|
