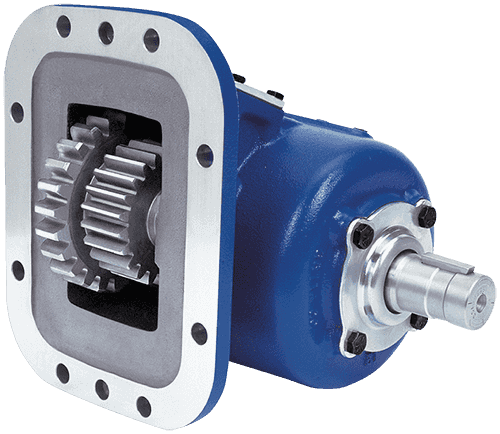

The Muncie SH8B-U6809-P3IX (also referenced as SH8BU6809P3IX) is an SH Series air-shift power take-off built for high-torque truck applications. This unit fills the gap between lighter and heavier PTO series with an integral air shift design that eliminates an exposed air cylinder, reducing potential leak points. The 8-bolt cast iron housing mounts securely to the transmission. Five speed ratios and 17 input gear sets give it wide transmission compatibility, while 12 output shaft options accommodate most common hydraulic pump configurations. Intermittent torque ratings reach 400 lb-ft (542 Nm) at the two highest speed ratios. Sold by Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for secure, high-strength transmission mounting
17 input gear sets for compatibility with most popular transmissions
12 output shaft options to fit most common hydraulic pump types
5 available speed ratios; intermittent torque up to 400 lb-ft (542 Nm)
Air-shift only operation designed specifically for high-torque applications
Tech Specs
- Series: Muncie SH Series Power Take-Off
- Part Number: SH8B-U6809-P3IX or SH8BU6809P3IX
- Shift Type: Air shift only (integral design, no exposed air cylinder)
- Housing: 8-bolt cast iron
- Input Gear Sets: 17
- Output Shaft Options: 12
- Speed Ratios Available: 5
- Intermittent Torque (Ratio 05): 400 lb-ft (542 Nm)
- Continuous Torque (Ratio 05): 280 lb-ft (379 Nm)
- Intermittent HP @ 1000 RPM (Ratio 05): 76 HP (57 kW)
- Intermittent Torque (Ratio 07): 400 lb-ft (542 Nm)
- Continuous Torque (Ratio 07): 280 lb-ft (379 Nm)
- Intermittent HP @ 1000 RPM (Ratio 07): 76 HP (57 kW)
- Intermittent Torque (Ratio 09): 375 lb-ft (508 Nm)
- Continuous Torque (Ratio 09): 263 lb-ft (356 Nm)
- Intermittent HP @ 1000 RPM (Ratio 09): 71 HP (53 kW)
- Intermittent Torque (Ratio 12): 325 lb-ft (441 Nm)
- Continuous Torque (Ratio 12): 228 lb-ft (309 Nm)
- Intermittent HP @ 1000 RPM (Ratio 12): 62 HP (46 kW)
- Intermittent Torque (Ratio 13): 325 lb-ft (441 Nm)
- Continuous Torque (Ratio 13): 228 lb-ft (309 Nm)
- Intermittent HP @ 1000 RPM (Ratio 13): 62 HP (46 kW)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
