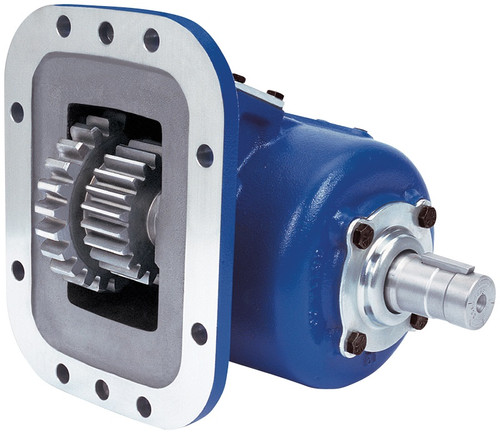

The Muncie SH Series power take-off, part number SH8S-M6507-P3BX or SH8SM6507P3BX, is an air-shift-only PTO built for high-torque truck applications. Muncie developed the SH Series to bridge the gap between their TG and 82 Series units. The integral air shift design eliminates exposed air cylinders, and the 8-bolt cast iron housing keeps mounting straightforward on the truck. With 17 available input gear sets, the SH8S fits most popular transmission configurations, and 12 output shaft options accommodate a wide range of pump types. Five speed ratios are available across the series. Call us to confirm the correct input gear set and output shaft configuration for your specific transmission and pump setup.
Features
Air shift only design with integral air cylinder - no exposed air cylinder hardware
8-bolt cast iron housing for straightforward mounting and structural strength
17 input gear sets to fit most popular heavy-duty transmission applications
12 output shaft options to match most common hydraulic pump configurations
5 available speed ratios across the SH Series
SH Series rated up to 76 intermittent HP at 1,000 RPM (400 lb-ft intermittent torque) at the 05 and 07 speed ratios
Tech Specs
- Housing: 8-bolt cast iron
- Shift Type: Air shift only (integral - no exposed air cylinder)
- Input Gear Sets: 17 (fits most popular transmissions)
- Output Shaft Options: 12
- Speed Ratios Available: 5
- Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| SH SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
