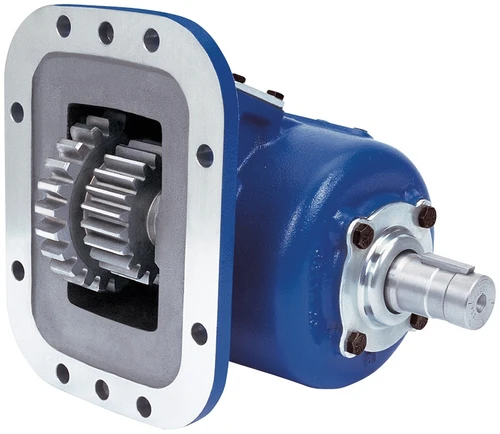

The Muncie SH8S-M6509-A1BX or SH8SM6509A1BX is an SH8 Series power take-off built for high-torque, air-shift-only applications. The integral air shift design keeps the air cylinder internal, eliminating exposed components. The 8-bolt cast iron housing simplifies mounting and holds up under demanding duty cycles. With 17 input gear sets available across the SH Series, this PTO is compatible with most popular transmission configurations, and 12 output shaft options make it adaptable to a wide range of hydraulic pump types. Five speed ratios within the series give further flexibility for matching output requirements to the application. Call us to confirm proper fit for your specific transmission and pump setup.
Features
Air-shift only design with integral, no-exposed-cylinder actuator
8-bolt cast iron housing for straightforward mounting and structural strength
17 input gear sets across the SH Series to fit most popular transmissions
12 output shaft options to match most common hydraulic pump types
5 available speed ratios for application flexibility
SH8 Series fills the torque range between the Muncie TG and 82 Series PTOs
Tech Specs
- Housing: 8-bolt cast iron
- Shift Type: Air shift (integral, no exposed air cylinder)
- Input Gear Sets: 17 options
- Output Shaft Options: 12
- Speed Ratios Available: 5
- Series Torque Rating (Intermittent, Speed Ratio 05 and 07): 400 lb.ft. / 542 Nm
- Series Torque Rating (Continuous, Speed Ratio 05 and 07): 280 lb.ft. / 379 Nm
- Series Torque Rating (Intermittent, Speed Ratio 09): 375 lb.ft. / 508 Nm
- Series Torque Rating (Continuous, Speed Ratio 09): 263 lb.ft. / 356 Nm
- Series Torque Rating (Intermittent, Speed Ratio 12 and 13): 325 lb.ft. / 441 Nm
- Series Torque Rating (Continuous, Speed Ratio 12 and 13): 228 lb.ft. / 309 Nm
- Series HP Rating (Intermittent @ 1000 RPM, Speed Ratio 05 and 07): 76 HP / 57 kW
- Series HP Rating (Intermittent @ 1000 RPM, Speed Ratio 09): 71 HP / 53 kW
- Series HP Rating (Intermittent @ 1000 RPM, Speed Ratio 12 and 13): 62 HP / 46 kW
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
