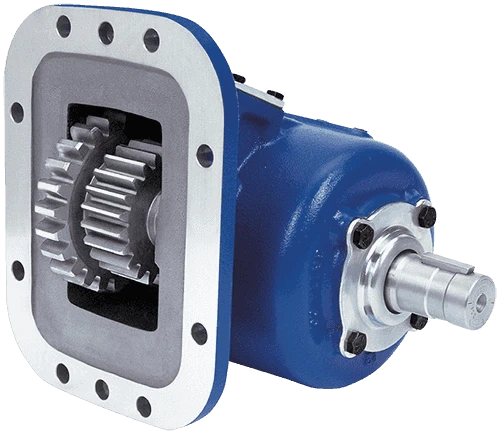

The Muncie SH8 Series Power Take-Off, part number SH8S-U6005-E1VX or SH8SU6005E1VX, is an air-shift-only PTO built for high-torque applications. It fits into the range between Muncie's TG and 82 Series, offering an 8-bolt cast iron housing for straightforward mounting. The integral air shift design keeps the air cylinder fully enclosed within the housing. With 17 input gear sets available across the SH Series, this unit accommodates most popular transmission configurations, while 12 output shaft options cover a wide range of hydraulic pump interfaces. Five speed ratios let you match output to the demands of the application. Intermittent torque ratings across the five speed ratios range from 325 to 400 lb-ft at 1,000 RPM. Call us to confirm the correct configuration for your transmission and pump setup.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for secure, straightforward mounting
17 input gear sets across the SH Series to fit most popular transmissions
12 output shaft options to match most common hydraulic pump types
5 speed ratios with intermittent torque ratings from 325 to 400 lb-ft at 1,000 RPM
Air-shift-only operation designed for high-torque duty cycles
Tech Specs
- Housing: 8-bolt cast iron
- Shift Type: Air shift only (integral, no exposed air cylinder)
- Speed Ratios Available (SH Series): 5
- Input Gear Sets Available (SH Series): 17
- Output Shaft Options Available (SH Series): 12
- Intermittent Torque at Speed Ratio 05: 400 lb-ft (542 Nm)
- Continuous Torque at Speed Ratio 05: 280 lb-ft (379 Nm)
- Intermittent HP at Speed Ratio 05 @ 1,000 RPM: 76 HP (57 kW)
- Intermittent Torque at Speed Ratio 07: 400 lb-ft (542 Nm)
- Continuous Torque at Speed Ratio 07: 280 lb-ft (379 Nm)
- Intermittent HP at Speed Ratio 07 @ 1,000 RPM: 76 HP (57 kW)
- Intermittent Torque at Speed Ratio 09: 375 lb-ft (508 Nm)
- Continuous Torque at Speed Ratio 09: 263 lb-ft (356 Nm)
- Intermittent HP at Speed Ratio 09 @ 1,000 RPM: 71 HP (53 kW)
- Intermittent Torque at Speed Ratio 12: 325 lb-ft (441 Nm)
- Continuous Torque at Speed Ratio 12: 228 lb-ft (309 Nm)
- Intermittent HP at Speed Ratio 12 @ 1,000 RPM: 62 HP (46 kW)
- Intermittent Torque at Speed Ratio 13: 325 lb-ft (441 Nm)
- Continuous Torque at Speed Ratio 13: 228 lb-ft (309 Nm)
- Intermittent HP at Speed Ratio 13 @ 1,000 RPM: 62 HP (46 kW)
- Overall Dimensions (H x W x L): 11.63 in. x 13.38 in. x 15.63 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
