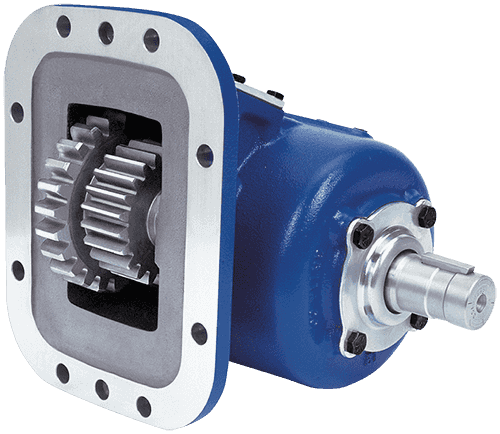

The Muncie SH Series power take-off, part number SH8S-U6807-P3IX or SH8SU6807P3IX, is an air-shift-only PTO built for high-torque truck applications. The integral air shift design keeps the air cylinder fully enclosed inside the housing, eliminating exposed components. The 8-bolt cast iron housing provides a secure, rigid mount, and 17 available input gear sets make this series compatible with most popular transmissions. Five speed ratios cover a broad range of operating demands, while 12 output shaft options accommodate most common hydraulic pump configurations. Positioned between Muncie's TG and 82 Series, the SH Series targets medium-duty and demanding applications where standard PTOs fall short. Call us to confirm proper fit for your specific transmission and pump combination.
Features
Integral air shift design with no exposed air cylinder
8-bolt cast iron housing for rigid, high-strength mounting
17 input gear sets compatible with most popular transmissions
5 available speed ratios for application versatility
12 output shaft options to fit most common pump types
Air-shift-only operation suited for high-torque demands
Tech Specs
- Series: Muncie SH Series
- Part Number: SH8S-U6807-P3IX or SH8SU6807P3IX
- Shift Type: Air shift only (integral, no exposed air cylinder)
- Housing: 8-bolt cast iron
- Input Gear Sets: 17
- Speed Ratios Available: 5
- Output Shaft Options: 12
- Intermittent Torque (Speed Ratio 05 and 07): 400 lb.ft. (542 Nm)
- Continuous Torque (Speed Ratio 05 and 07): 280 lb.ft. (379 Nm)
- Intermittent HP @ 1000 RPM (Speed Ratio 05 and 07): 76 HP (57 kW)
- Intermittent Torque (Speed Ratio 09): 375 lb.ft. (508 Nm)
- Continuous Torque (Speed Ratio 09): 263 lb.ft. (356 Nm)
- Intermittent HP @ 1000 RPM (Speed Ratio 09): 71 HP (53 kW)
- Intermittent Torque (Speed Ratio 12 and 13): 325 lb.ft. (441 Nm)
- Continuous Torque (Speed Ratio 12 and 13): 228 lb.ft. (309 Nm)
- Intermittent HP @ 1000 RPM (Speed Ratio 12 and 13): 62 HP (46 kW)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
Speed Ratio | Intermittent HP@1000 RPM | Intermittent Torque lbs.ft. | Continuous Torque lbs.ft. | Intermittent (kw)@1000 RPM | Intermittent Torque (NM) | Continuous Torque (NM) |
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
