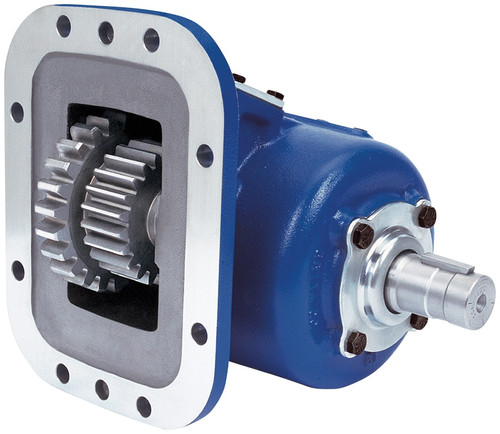

The Muncie SH8S-U6809-P3CX or SH8SU6809P3CX is an air-shift-only power take-off from the Muncie SH8 Series, engineered for high-torque applications that fall between the TG and 82 Series in capacity. The integral air shift design encloses the air cylinder within the housing, eliminating exposed components. The 8-bolt cast iron housing keeps mounting straightforward and mechanically secure. Seventeen input gear sets cover most popular transmission applications, while 12 output shaft options accommodate a wide range of pump types. Five available speed ratios let you match output to the job. Intermittent torque ratings for the SH Series reach up to 400 lb-ft (542 Nm) at the .05 and .07 speed ratios, with continuous torque up to 280 lb-ft (379 Nm). Call us to confirm the correct ratio and output configuration for your application.
Features
Air shift only design with integral, no-exposed-cylinder actuation
8-bolt cast iron housing for straightforward mounting and structural strength
17 input gear sets fit most popular heavy-duty transmission applications
12 output shaft options accommodate most common pump types
5 available speed ratios for versatile output matching
Intermittent torque up to 400 lb-ft (542 Nm); continuous torque up to 280 lb-ft (379 Nm) at .05/.07 speed ratios
Tech Specs
- Series: Muncie SH8 Series Power Take-Off
- Shift Type: Air shift only (integral air shift, no exposed air cylinder)
- Housing: 8-bolt cast iron
- Input Gear Sets: 17 (fits most popular transmissions)
- Output Shaft Options: 12 (fits most popular pump types)
- Speed Ratios Available: 5
- Intermittent Torque (Ratio 05): 400 lb-ft (542 Nm)
- Continuous Torque (Ratio 05): 280 lb-ft (379 Nm)
- Intermittent HP @ 1000 RPM (Ratio 05): 76 HP (57 kW)
- Intermittent Torque (Ratio 07): 400 lb-ft (542 Nm)
- Continuous Torque (Ratio 07): 280 lb-ft (379 Nm)
- Intermittent HP @ 1000 RPM (Ratio 07): 76 HP (57 kW)
- Intermittent Torque (Ratio 09): 375 lb-ft (508 Nm)
- Continuous Torque (Ratio 09): 263 lb-ft (356 Nm)
- Intermittent HP @ 1000 RPM (Ratio 09): 71 HP (53 kW)
- Intermittent Torque (Ratio 12): 325 lb-ft (441 Nm)
- Continuous Torque (Ratio 12): 228 lb-ft (309 Nm)
- Intermittent HP @ 1000 RPM (Ratio 12): 62 HP (46 kW)
- Intermittent Torque (Ratio 13): 325 lb-ft (441 Nm)
- Continuous Torque (Ratio 13): 228 lb-ft (309 Nm)
- Intermittent HP @ 1000 RPM (Ratio 13): 62 HP (46 kW)
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP@1000 RPM
|
Intermittent Torque lbs.ft.
|
Continuous Torque lbs.ft.
|
Intermittent (kw)@1000 RPM
|
Intermittent Torque (NM)
|
Continuous Torque (NM)
|
| 05 | 76 | 400 | 280 | (57) | (542) | (379) |
| 07 | 76 | 400 | 280 | (57) | (542) | (379) |
| 09 | 71 | 375 | 263 | (53) | (508) | (356) |
| 12 | 62 | 325 | 228 | (46) | (441) | (309) |
| 13 | 62 | 325 | 228 | (46) | (441) | (309) |
