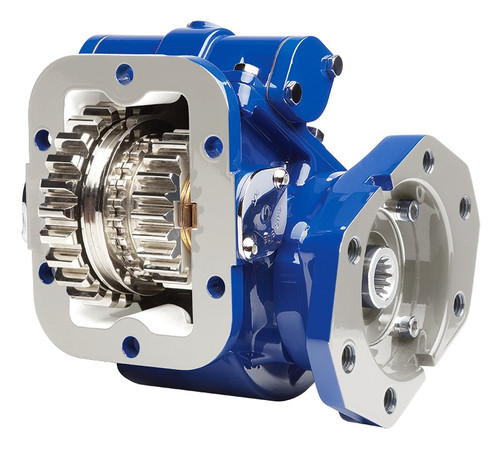

Muncie TG6B-A6906-53SX or TG6BA690653SX is a TG6 Series PTO built on a 6-bolt housing with a mechanical shift. Its job is to carry engine power from the transmission out to a driven accessory, a hydraulic pump being the usual example, and the shift lets the operator engage it when the equipment needs to run. Muncie builds the TG Series in a die-cast aluminum housing with a modular layout, so service is easier, and the constant mesh input gear shields the transmission from engagement errors. Too little gear lash tends to whine and too much tends to chatter, which helps when you are tracing a noise. A genuine Muncie part from Pro Gear and Transmission. Not sure this is your PTO? Give us a call.
Features
6-bolt TG6 Series housing with mechanical shift
Die-cast aluminum housing helps keep noise down and sheds heat well
Modular design for flexibility and ease of repair
Constant mesh input gear shields the transmission from engagement errors
Rotatable hydraulic flanges are part of the TG Series options for pump clearance
Carries engine power from the transmission to a driven accessory such as a hydraulic pump
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
