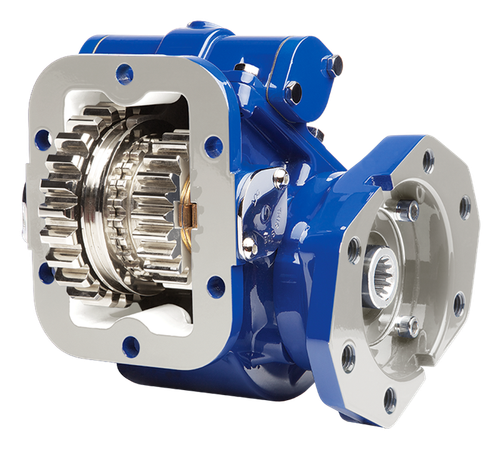

TG6B-F8908-E1KX or TG6BF8908E1KX is a genuine Muncie TG6 Series PTO with a 6-bolt housing and mechanical shift. The TG Series is a double-gear power take-off with a constant mesh input gear and a die-cast aluminum housing that runs quieter and sheds heat well. An extra large shift cover opening allows easy access to check backlash. A power take-off sends power out of the transmission to drive auxiliary equipment on the truck. Call us to confirm proper fit for your transmission.
Features
TG6 Series PTO with a 6-bolt housing and mechanical shift
Die-cast aluminum housing cuts noise, with superior heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Modular design for flexibility and ease of repair
Extra large shift cover opening allows easy access to check backlash
Compact size minimizes mounting interference
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
