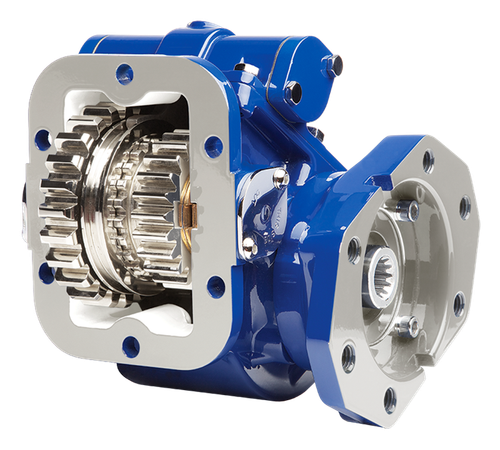

TG6B-KIT12-X1BH or TG6BKIT12X1BH is a genuine Muncie TG6 Series PTO, a 6-bolt mechanical shift unit, sold by Pro Gear and Transmission. The TG Series is a double-gear design with a die-cast aluminum housing that cuts weight and noise and sheds heat well, a constant mesh input gear that isolates the transmission from engagement errors, and a modular build that makes repair easier. A transmission-mounted PTO taps the transmission for power and sends it out to work gear, usually through a hydraulic pump, so one engine can run dump bodies, winches and compactors. Call us to confirm fit for your transmission.
Features
TG6 Series PTO, 6-bolt housing with mechanical shift
Die-cast aluminum housing reduces weight and noise and dissipates heat
Constant mesh input gear isolates the transmission from engagement errors
Modular design for flexibility and ease of repair
Extra large shift cover opening allows easy access to check backlash
Taps transmission power for work gear, usually via a hydraulic pump
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
