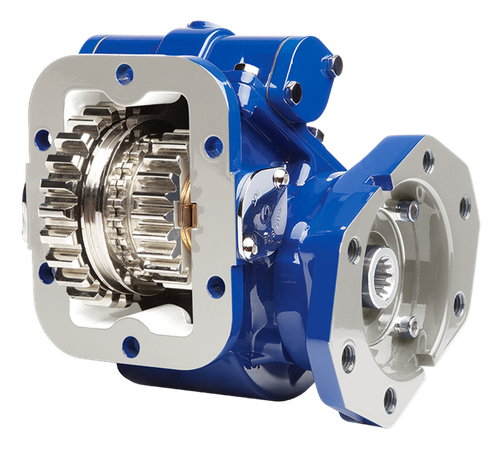

The Muncie TG6N-I8506-C3PX or TG6NI8506C3PX is a TG Series double-gear power take-off, the most widely used PTO platform in the heavy-duty truck industry. The TG Series is configurable across 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears to cover most popular transmissions. The die-cast aluminum housing reduces operating noise and dissipates heat efficiently. A constant mesh input gear design isolates the transmission from engagement errors, and the electric or hydraulic shift option removes the need for shift cables entirely. The 6 or 8-bolt housing mounting pattern simplifies installation, while the compact footprint minimizes interference with surrounding components. Call us to confirm proper fit for your transmission and application.
Features
Die-cast aluminum housing reduces noise and provides superior heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
6 or 8-bolt housing for simplified installation across common transmission openings
Electric or hydraulic shift option eliminates shift cables
Modular design allows straightforward field repair and component replacement
Rotatable hydraulic flanges maximize pump clearance at installation
Tech Specs
- Series: Muncie TG Series double-gear PTO
- Housing material: Die-cast aluminum
- Mounting bolt pattern: 6-bolt or 8-bolt
- Shift types available in series: 13
- Speed ratios available in series: 10
- Output shaft options available in series: 10
- Input gear options available in series: 11 (covers most popular transmissions)
- Shift actuation: Electric or hydraulic (no shift cables required)
Additional Information
| TG SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Ratings shown are TG Series family ratings across available speed ratios. Verify the specific ratio for part number TG6N-I8506-C3PX using the Muncie TG Series model construct diagram above or by calling Pro Gear and Transmission to confirm the correct configuration for your application.
