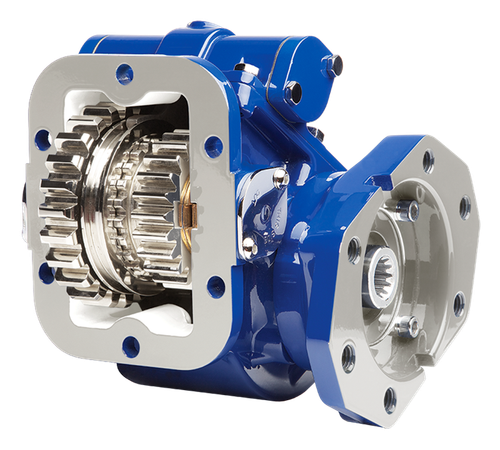

The Muncie TG6N-I8508-E3BX or TG6NI8508E3BX is a double-gear type power take-off from Muncie Power Products' TG Series, the most widely used PTO line in the heavy-duty truck industry. The TG Series is engineered with a die-cast aluminum housing that reduces noise and dissipates heat, and a constant mesh input gear that isolates the transmission from engagement errors. A 6 or 8-bolt housing pattern simplifies installation, while the modular design allows for straightforward field repair. Rotatable hydraulic flanges maximize pump clearance, and the oversized shift cover opening makes backlash checks quick. Electric or hydraulic shift options eliminate shift cables entirely. Call us to confirm proper fit for your transmission and application.
Features
Die-cast aluminum housing reduces noise and improves heat dissipation
6 or 8-bolt housing pattern for simplified installation
Constant mesh input gear isolates the transmission from engagement errors
Modular design allows flexibility and ease of field repair
Electric or hydraulic shift option eliminates shift cables
Rotatable hydraulic flanges maximize pump clearance
Tech Specs
Additional Information
| TG SERIES PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
