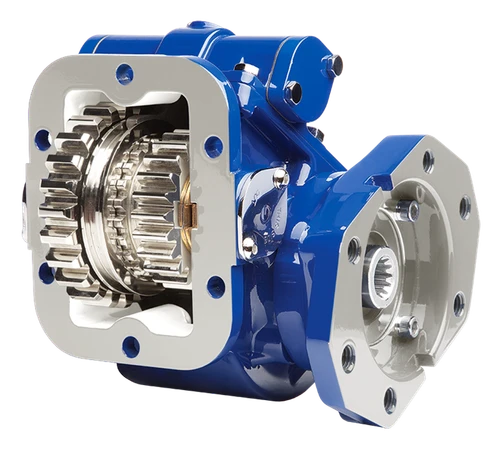

The Muncie TG6N-I8513-X1SH (also referenced as TG6NI8513X1SH) is a TG Series double-gear type power take-off, one of the most widely used PTO designs in the heavy-duty truck industry. The TG Series is engineered for broad application flexibility, available across 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gear configurations covering all popular transmissions. The die-cast aluminum housing delivers noise reduction and heat dissipation, while the constant mesh input gear isolates the transmission from engagement errors. The compact footprint minimizes mounting interference, and rotatable hydraulic flanges allow pump clearance adjustment without repositioning the unit. Electric or hydraulic shift options eliminate shift cables entirely. Call us to confirm proper fit for your transmission and application.
Features
Muncie TG Series double-gear type PTO - part number TG6N-I8513-X1SH or TG6NI8513X1SH
Die-cast aluminum housing reduces noise and dissipates heat efficiently
6 or 8-bolt housing pattern simplifies installation on popular transmissions
Constant mesh input gear isolates the transmission from engagement errors
Electric or hydraulic shift option eliminates the need for shift cables
Rotatable hydraulic flanges maximize pump clearance; extra-large shift cover opening allows easy backlash checks
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
