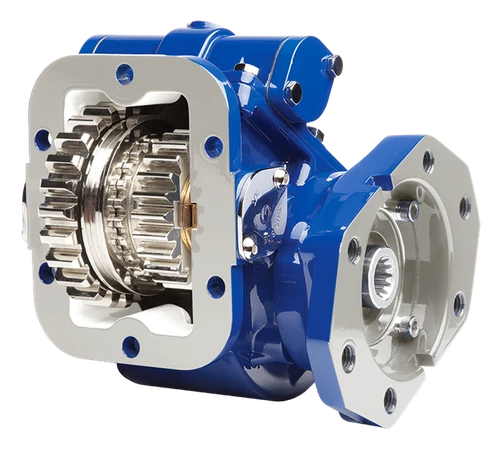

The Muncie TG6N-S7106-C1KX or TG6NS7106C1KX is a TG6 Series double-gear power take-off with a 6-bolt mechanical shift configuration. The die-cast aluminum housing reduces noise and dissipates heat, while the constant mesh input gear isolates the transmission from engagement errors. At 9.13 in. tall, 10.38 in. wide, and 12.5 in. long, it fits where clearance is tight. Rotatable hydraulic flanges maximize pump clearance, and the extra-large shift cover opening makes backlash checks straightforward. The modular design simplifies field repair. Call us to confirm proper fit for your transmission and application.
Features
TG6 Series double-gear PTO, 6-bolt mechanical shift
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges for maximum pump clearance
Extra-large shift cover opening for easy backlash inspection
Modular design simplifies repair and component replacement
Tech Specs
- Series: Muncie TG6 (double-gear type PTO)
- Part Number: TG6N-S7106-C1KX or TG6NS7106C1KX
- Bolt Pattern: 6-bolt housing
- Shift Type: Mechanical shift
- Housing Material: Die-cast aluminum
- Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
These torque and horsepower ratings apply to the TG Series family. Ratings vary by speed ratio selected. Call us to confirm the correct ratio and configuration for your specific application.
