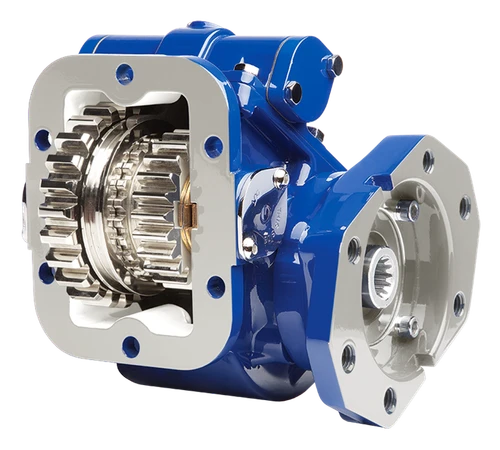

The Muncie TG6N-S7108-C2KX or TG6NS7108C2KX is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. The die-cast aluminum housing dissipates heat efficiently and reduces operating noise. A constant mesh input gear isolates the transmission from engagement errors, while the compact envelope minimizes mounting interference. Rotatable hydraulic flanges allow pump clearance to be maximized at installation. The extra-large shift cover opening provides direct access to check backlash without pulling the unit. Overall dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. Available from Pro Gear and Transmission - call us to confirm proper fit for your application.
Features
TG6 Series double-gear power take-off
6-bolt housing for simplified installation
Mechanical shift configuration
Die-cast aluminum housing for reduced noise and superior heat dissipation
Constant mesh input gear isolates transmission from engagement errors
Rotatable hydraulic flanges maximize pump clearance
Extra-large shift cover opening allows easy backlash inspection
Compact dimensions: 9.13 in. H x 10.38 in. W x 12.5 in. L
Tech Specs
- Series: Muncie TG6
- Part Number: TG6N-S7108-C2KX or TG6NS7108C2KX
- Housing: 6-bolt die-cast aluminum
- Shift Type: Mechanical
- Height: 9.13 in.
- Width: 10.38 in.
- Length: 12.5 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Note: Torque and horsepower ratings above are TG Series ratings and apply across speed ratios. Confirm the specific ratio for part number TG6N-S7108-C2KX before specifying torque requirements. Call Pro Gear and Transmission to verify the correct configuration for your application.
