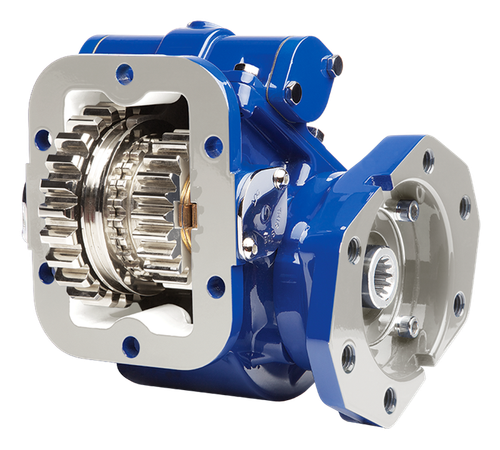

The Muncie TG6N-S7109-C2BX or TG6NS7109C2BX is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift configuration. The die-cast aluminum housing reduces noise and dissipates heat efficiently, while the constant mesh input gear isolates the transmission from engagement errors. Dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. The extra large shift cover opening gives easy access for backlash inspection, and rotatable hydraulic flanges allow flexibility in pump positioning. The modular design simplifies repairs, and the compact footprint minimizes mounting interference. Call us to confirm proper fit for your transmission application.
Features
TG6 Series double-gear power take-off (PTO)
6-bolt die-cast aluminum housing - reduces noise and improves heat dissipation
Mechanical shift configuration
Constant mesh input gear isolates the transmission from engagement errors
Extra large shift cover opening for easy backlash inspection
Rotatable hydraulic flanges for maximum pump clearance
Modular design for straightforward field repairs
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
| Speed Ratio | Intermittent HP @ 1000 RPM | Intermittent Torque (lb-ft) | Continuous Torque (lb-ft) | Intermittent (kW) @ 1000 RPM | Intermittent Torque (Nm) | Continuous Torque (Nm) |
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
