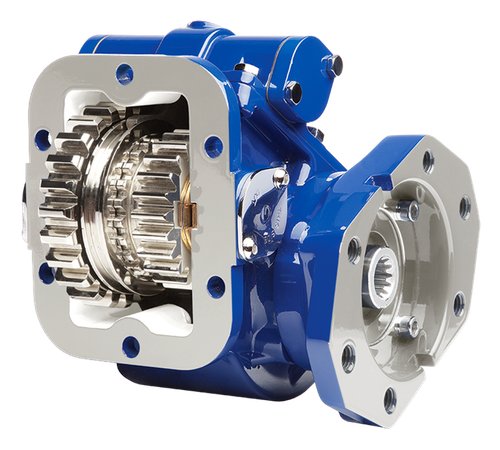

The Muncie TG6N-S7113-C3QH or TG6NS7113C3QH is a TG6 Series power take-off (PTO) featuring a 6-bolt housing with mechanical shift. The die-cast aluminum housing delivers superior heat dissipation compared to cast iron, and the constant mesh input gear isolates the transmission from engagement errors during shifting. An extra-large shift cover opening provides direct access for backlash checks without removing the unit. Rotatable hydraulic flanges maximize pump clearance in tight mounting situations, and the modular design simplifies field repairs. Dimensions are 9.13 in. H x 10.38 in. W x 12.5 in. L. Pro Gear and Transmission carries genuine Muncie parts - call us to confirm proper fit for your application.
Features
TG6 Series PTO - part number TG6N-S7113-C3QH or TG6NS7113C3QH
6-bolt die-cast aluminum housing for simplified installation and superior heat dissipation
Mechanical shift with constant mesh input gear - isolates transmission from engagement errors
Extra-large shift cover opening for easy backlash inspection
Rotatable hydraulic flanges for maximum pump clearance
Modular design for flexibility and ease of field repair
Tech Specs
- Series: TG6
- Housing: 6-bolt die-cast aluminum
- Shift Type: Mechanical
- Height: 9.13 in.
- Width: 10.38 in.
- Length: 12.5 in.
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP at 1000 RPM
|
Intermittent Torque (lb-ft)
|
Continuous Torque (lb-ft)
|
Intermittent (kW) at 1000 RPM
|
Intermittent Torque (Nm)
|
Continuous Torque (Nm)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
