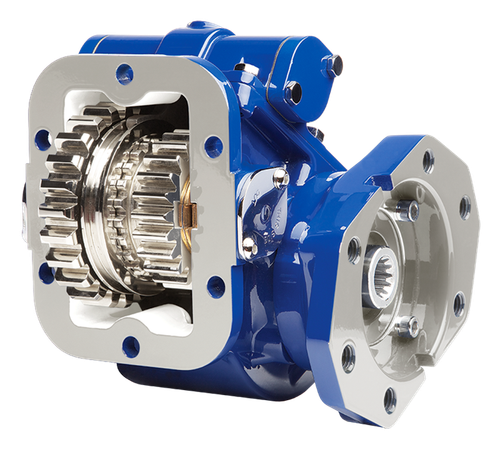

The Muncie TG6N-S7118-A3BA or TG6NS7118A3BA is a TG6 Series double-gear power take-off with a 6-bolt housing and mechanical shift. Part of Muncie's most widely used PTO line, the TG Series is available across 10 speed ratios, 13 shift types, 10 output shaft options, and 11 input gears to cover most popular transmissions. The die-cast aluminum housing reduces noise and dissipates heat effectively, while a constant mesh input gear isolates the transmission from engagement errors. Compact dimensions of 9.13 in. H x 10.38 in. W x 12.5 in. L help minimize mounting interference. Rotatable hydraulic flanges and an extra-large shift cover opening round out the design for easy installation and service. Call us to confirm proper fit for your application.
Features
TG6 Series double-gear power take-off, 6-bolt housing with mechanical shift
Die-cast aluminum housing reduces noise and provides superior heat dissipation
Constant mesh input gear isolates the transmission from engagement errors
Modular design simplifies field repair and component replacement
Rotatable hydraulic flanges maximize pump clearance
Extra-large shift cover opening allows easy backlash inspection
Tech Specs
- Housing: 6-bolt, die-cast aluminum
- Shift Type: Mechanical
- Dimensions (H x W x L): 9.13 in. x 10.38 in. x 12.5 in.
- Part Number: TG6N-S7118-A3BA or TG6NS7118A3BA
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Speed Ratio
|
Intermittent HP @ 1000 RPM
|
Intermittent Torque (lb-ft)
|
Continuous Torque (lb-ft)
|
Intermittent (kW) @ 1000 RPM
|
Intermittent Torque (Nm)
|
Continuous Torque (Nm)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Ratings shown are TG Series family ratings across available speed ratios. Confirm the specific ratio for part number TG6N-S7118-A3BA with Pro Gear and Transmission before ordering.
