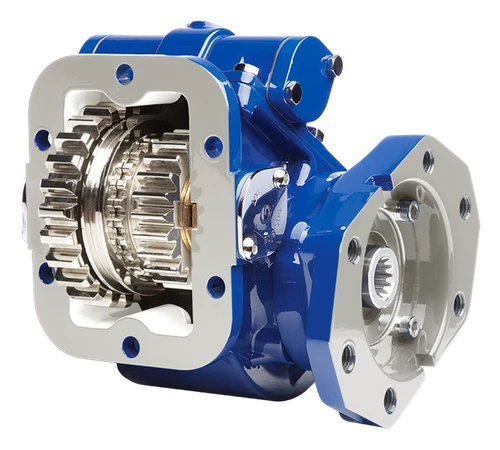

Muncie TG8B-KIT06-X1IX or TG8BKIT06X1IX is a TG Series power take-off with an 8-bolt housing and mechanical shift. The TG Series is Muncie's double-gear type PTO, built in a die-cast aluminum housing that keeps noise down and sheds heat well. A constant mesh input gear isolates the transmission from engagement errors, and the modular design makes the unit easier to repair. A PTO like this passes engine power through the transmission to auxiliary equipment such as a hydraulic pump. A genuine Muncie part from Pro Gear and Transmission. Call us to confirm proper fit for your transmission.
Features
Die-cast aluminum housing reduces noise with superior heat dissipation
8-bolt housing with mechanical shift
Modular design for flexibility and ease of repair
Constant mesh input gear isolates the transmission from engagement errors
Compact size minimizes mounting interference
Passes engine power through the transmission to auxiliary equipment such as a hydraulic pump
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
