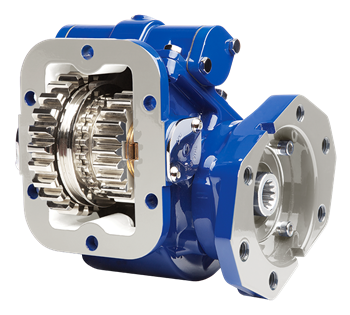

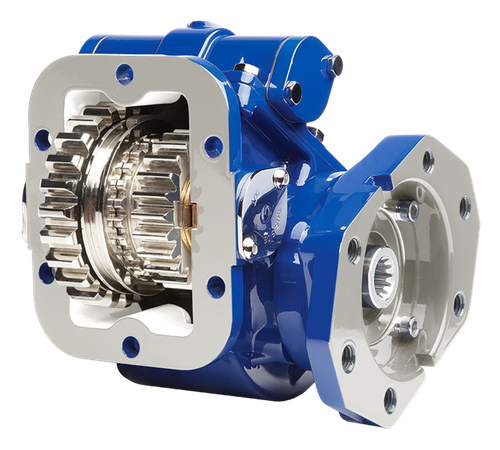

Muncie TG8B-U6805-E1KG or TG8BU6805E1KG is a TG8 Series power take-off with an 8-bolt housing and mechanical shift. A transmission PTO lets the truck's engine run auxiliary equipment such as a hydraulic pump, and the driver engages it from the cab. Muncie builds the TG Series as a double-gear unit with a die-cast aluminum housing, a modular design that eases repair, and an extra large shift cover opening for checking backlash. Leaks, a change in how the unit sounds, or chafed hoses and wires are the usual cues to inspect it. A genuine Muncie part from Pro Gear and Transmission. Call us to confirm proper fit.
Features
TG8 Series PTO with 8-bolt housing and mechanical shift
Die-cast aluminum housing for lower noise and good heat dissipation
Modular design provides flexibility and ease of repair
Extra large shift cover opening allows easy access to check backlash
TG Series is offered in 10 speed ratios, 13 shift types, 10 output shaft options and 11 input gears
Early warning signs to watch for: leaks, changed operating sound, chafed hoses and wires
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
