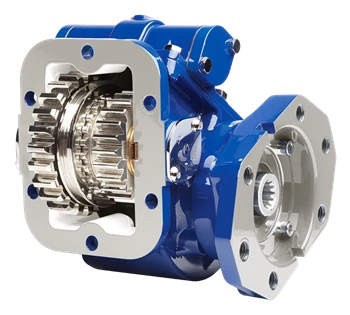

Muncie TG8B-U6807-E3PX or TG8BU6807E3PX is a TG8 Series power take-off, an 8-bolt, mechanical shift unit from Muncie's double-gear TG family. A PTO picks up drive from the transmission through a gear and carries it out to run auxiliary equipment, most often a hydraulic pump. The TG housing is die-cast aluminum, the input gear is constant mesh, and the hydraulic flanges rotate to help with pump clearance. On any PTO, a high-pitched whine usually means the PTO and transmission gears are meshing too tightly, while a rattle points to too much play between them. A genuine Muncie part from Pro Gear and Transmission. Call us to confirm proper fit for your application.
Features
TG8 Series PTO with 8-bolt mounting and mechanical shift
Double-gear design with a constant mesh input gear
Die-cast aluminum housing in a modular, compact package
Rotatable hydraulic flanges for pump clearance
Extra large shift cover opening for checking backlash
A whine or rattle from a PTO usually traces back to how the PTO gear meshes with the transmission gear
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
