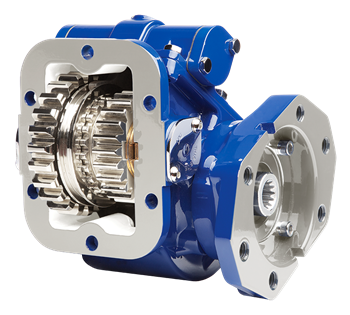

Genuine Muncie TG8B-U6807-P1KX or TG8BU6807P1KX power take-off, an 8-bolt, mechanical shift unit from the TG Series. The TG Series is a double-gear style PTO, a design that can be set up to suit the speed, torque and horsepower the driven equipment calls for. The series uses a die-cast aluminum housing, a constant mesh input gear that keeps the transmission isolated from engagement errors, and an extra large shift cover opening for checking backlash. A power take-off has to match both the job and the transmission it mounts to, so call us with your transmission and application to confirm proper fit. A genuine Muncie part from Pro Gear and Transmission.
Features
8-bolt TG8 Series PTO with mechanical shift
Double-gear style TG Series power take-off
Die-cast aluminum housing keeps the unit lighter and quieter and sheds heat well
Constant mesh input gear keeps the transmission isolated from engagement errors
Extra large shift cover opening for easy backlash checks
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
