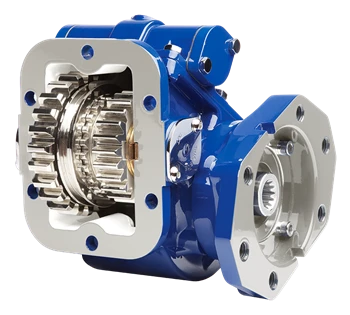

Muncie TG8B-U6809-A3KX or TG8BU6809A3KX is a TG8 Series power take-off with an 8-bolt housing and a mechanical shift. The die-cast aluminum housing keeps noise down and sheds heat well, while the modular construction gives flexibility and makes repairs easier.
A double-gear PTO of this kind bolts to the transmission and lets it drive auxiliary equipment such as a hydraulic pump. The constant mesh input gear isolates the transmission from engagement errors, and the extra large shift cover opening makes it simple to check backlash. The TG Series is offered with 10 output shaft options and 11 input gears, so call Pro Gear and Transmission to confirm proper fit for your application. A genuine Muncie part.
Features
8-bolt housing with mechanical shift
Die-cast aluminum housing for quieter running and better heat dissipation
Modular design for flexibility and ease of repair
Constant mesh input gear isolates the transmission from engagement errors
Extra large shift cover opening for checking backlash
Rotatable hydraulic flanges for pump clearance
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
