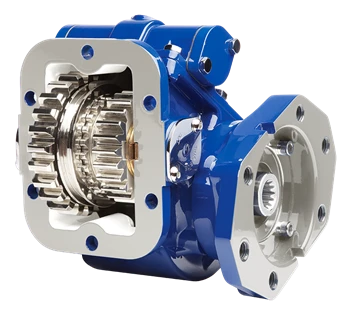

Muncie TG8D-S6807-A3PG or TG8DS6807A3PG is a TG Series PTO with an 8-bolt housing and mechanical shift, a genuine Muncie part from Pro Gear and Transmission. The TG Series is built around a die-cast aluminum housing, a modular layout and a constant mesh input gear, so engaging the unit does not force gear teeth together.
Mounted on the transmission, a PTO like this takes rotation from a transmission gear and hands it to a pump or other auxiliary equipment. A high-pitched whine while it runs usually points to a mesh set too tight, and damaged gear teeth in either the PTO or the transmission are another common source of noise. Give us a call to confirm proper fit for your application.
Features
8-bolt housing with mechanical shift
Modular TG Series design for flexibility and ease of repair
Die-cast aluminum housing
Constant mesh input gear keeps engagement errors from reaching the transmission
Rotatable hydraulic flanges for pump clearance
Takes rotation from a transmission gear and passes it to auxiliary equipment
Tech Specs
Additional Information
| PTO Torque & Horsepower Ratings | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
Parts manual and diagrams: Muncie TG Series PTO parts list with prices
