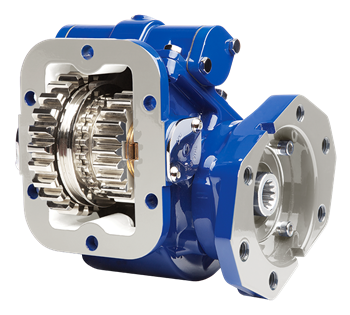

Genuine Muncie PTO P/N: TG8D-S6808-P1PG or TG8DS6808P1PG. For more precise availability please give us a call we will help you out!
Features
Die-cast aluminum housing: Reduces weight and noise, with superior heat dissipation
6 or 8-bolt housing: For simplified installation
Modular design: Provides flexibility and ease of repair
Constant mesh input gear: Isolates transmission from engagement errors
Compact size: Minimizes mounting interference
Electric/hydraulic shift option: Eliminates the need for shift cables
Extra large shift cover opening: Allows easy access to check backlash
Rotatable hydraulic flanges: Maximizes pump clearance
Tech Specs
Additional Information
| PTO TORQUE & HORSEPOWER RATINGS | ||||||
|---|---|---|---|---|---|---|
|
Relación de velocidad
|
Intermitente HP a 1000 RPM
|
Torque Intermitente lb/pie
|
Torque Continuo lb/pie
|
Intermitente (kw) a 1000 RPM
|
Torque Intermitente (NM)
|
Torque Continuo (NM)
|
| 04 | 54 | 285 | 200 | (40) | (386) | (270) |
| 05 | 51 | 270 | 189 | (38) | (366) | (256) |
| 06 | 47 | 245 | 172 | (35) | (332) | (232) |
| 07 | 44 | 230 | 161 | (33) | (312) | (218) |
| 08 | 44 | 230 | 161 | (33) | (312) | (218) |
| 09 | 39 | 205 | 144 | (29) | (278) | (195) |
| 12H | 40 | 210 | 147 | (30) | (284) | (199) |
| 13H | 40 | 210 | 147 | (30) | (284) | (199) |
| 15H | 37 | 195 | 137 | (28) | (264) | (185) |
| 18H | 33 | 175 | 123 | (25) | (237) | (166) |
Approximate Weight: 22 lbs. (10.0 Kg.)
